A John Deere Scraper-Special Tractors review starts with one correction: Scraper-Special is not a model. It is a factory configuration built across three machines — the wheeled 9R, the two-track 9RT, and the four-track 9RX. The right question is never “how much horsepower does it have” but “which configuration, engine, and pan are you pairing it with.” Get those three answers right and one operator can load, haul, spread and compact, doing the work of a self-propelled scraper fleet at roughly half the labor and a third of the investment.
This John Deere Scraper-Special Tractors review covers the class as it stands in the USA in late 2026: the current JD14-powered lineup from the 9R 490 to the 9R 640, the JD18-powered 9RX 710, 770 and 830 at the top, and the older 2015-era machines that fill the used market. Every figure below is tied to a named model — no single engine, weight, or fuel capacity applies to all of them. On price, there is no single new number — the tractor is configured and the pans are usually quoted separately — but October 2026 used listings for big 9R and 9RX family machines in the 570–620 hp class ran about $405,000 to $460,000.
John Deere Scraper-Special Tractors Review and Prices
The Scraper Special badge means the tractor left the factory reinforced for earthmoving: a stronger frame, front/rear axle supports, a heavy-duty drawbar support, larger articulation pins and bearings, a heavy-duty gudgeon, and a tow cable as base equipment. Those parts separate a Scraper Special from the same horsepower in agricultural dress, and this section of the John Deere Scraper-Special Tractors review covers the models, their jobs, and their used prices.
Scraper-Special Models, Features and Intended Applications
The current lineup, as listed by John Deere dealers, runs from the 9R 490, 9R 540, 9R 590 and 9R 640 on wheels, through the 9RT 470, 9RT 520, 9RT 570 and 9RT 590 on two tracks, to the 9RX 490, 9RX 540 and 9RX 590 on four tracks, with the JD18-powered 9RX 770 offered as a Scraper Special above them. Rated power spans 470 hp to 830 hp, because scraper work spans that wide — from a single 15-yard carry-all pan on a subdivision to triple 24-yard ejector pans on a highway job.
Two systems define the class. AutoLoad, exclusive to John Deere, automates the scraper’s lift during loading, adjusting cutting-edge height from draft load, wheel slip and soil. The newer Earthmoving Productivity System adds a 3D stereo camera inside the pan, measures yardage in real time, and sends totals to the supervisor through JDLink. Applications run from development, road construction, mining and quarry work, and levee, reservoir and airport construction to farm jobs like land leveling and pond building.
New and Used Prices by Model, Hours and Equipment
New pricing is a dealer conversation: the tractor is configured with a cab/visibility package, pump option, ballast, and drawbar support length, and the pans are quoted separately or as a system. This John Deere Scraper-Special Tractors review insists on a system price — tractor plus pans plus grade-control or productivity hardware — because a cheap tractor quote with the wrong pump or short drawbar support turns expensive once pans arrive.
A 2018 John Deere 9620R with the 115-gpm pump, dual wheels and AutoLoad was listed at $449,500 in Mt. Vernon, Washington. A 2020 9620RX with 2,245 hours was listed at $404,900 in Story City, Iowa, a 2019 9620RX with 1,509 hours at $410,000 in Carroll, Iowa, and a 2021 9620RX with 1,810 hours at $459,999 in Colfax, Washington. Those are asking prices for 9R and 9RX family machines in the 570–620 hp class — the closest public proxy for used Scraper Special values.
| Used listing (October 2026) | Hours | Asking price | What moves the price |
|---|---|---|---|
| 2018 John Deere 9620R, 115-gpm pump, duals, AutoLoad | Not listed | $449,500 | Scraper-ready pump, AutoLoad |
| 2020 John Deere 9620RX, 30-in. tracks | 2,245 | $404,900 | Higher hours, lower price |
| 2019 John Deere 9620RX | 1,509 | $410,000 | Lower hours, mid-band price |
| 2021 John Deere 9620RX, 36-in. tracks, no PTO or 3-point | 1,810 | $459,999 | Newest year, strongest ask |
| Observed band, 570–620 hp class | 1,509–2,245 | $404,900–$459,999 | Hours and equipment explain the spread |
Two cautions on used prices: those figures are asking prices, not auction results, and pans are usually a separate purchase on top of the tractor price.
John Deere Scraper-Special Tractors Engine, HP and Specs
If one section of this John Deere Scraper-Special Tractors review deserves a second read, it is this one: the class spans three engine families and two transmissions, and a wrong assumption here leaves buyers underpowered.
Rated HP, Maximum HP, Engine Options and PTO Power
The current JD14 generation uses John Deere’s 13.6-liter inline six with high-pressure common-rail injection, DOC/SCR aftertreatment, no DPF. Rated power runs from 470 hp (9RT 470) to 640 hp (9R 640, 9RX 640), with roughly 10 percent boost: the 9R 590 Scraper Special rated 590 hp, peaking at 649 hp, making 2,008 lb-ft at 1,550 rpm, while the 9RX 490 Scraper Special rated 490 hp, peaking at 539 hp, making 1,668 lb-ft at the same speed. The 640 models are the exception, with a Cummins 15-liter peaking at 691 hp. Above them, the JD18 generation steps up: the 9RX 710 is rated at 700 hp and peaks at 781 hp, the 9RX 770 Scraper Special at 770/847 hp with 3,928 Nm of torque, and the 9RX 830 at 913 hp peak. The 18-liter JD18 needs no diesel exhaust fluid, and its roughly 515-gallon tank refills in under four minutes.
The older generation still matters because it is what most used buyers find. From the 2015-era lineup, the 9470R/RT made 470 hp and the 9520R/RT made 520 hp from the PowerTech PSS 13.5-liter engine, while the 9570R/RT made 570 hp and the 9620R made 620 hp from the Cummins QSX15 14.9-liter engine. They share much hardware with the agricultural 9R tractors of the era — the 9620RX review and 9570RX review cover the four-track side — but Scraper Special versions add the reinforced frame, axle supports, and drawbar support. The agricultural 9RX 590 review pairs with this John Deere Scraper-Special Tractors review, since the current 9R 590 Scraper Special shares its JD14 engine and e18 transmission with it. PTO power is a footnote here: many Scraper Specials are ordered without a PTO or hitch, since their work is drawbar work.
| Scraper Special model | Engine | Rated / maximum hp | Transmission |
|---|---|---|---|
| 9R 490 / 9RX 490 Scraper Special | JD14 13.6L | 490 / 539 | e18 18F/6R |
| 9R 540 / 9RX 540 Scraper Special | JD14 13.6L | 540 / 594 | e18 18F/6R |
| 9R 590 / 9RT 590 / 9RX 590 Scraper Special | JD14 13.6L | 590 / 649 | e18 18F/6R |
| 9R 640 / 9RX 640 Scraper Special | Cummins 15L | 640 / 691 | e18 18F/6R |
| 9RT 470 / 520 / 570 Scraper Special | JD14 13.6L | 470–570 / 517–627 | e18 18F/6R |
| 9RX 710 / 770 / 830 Scraper Special | JD18 18L | 700–830 / 781–913 | e21 21F/11R |
| Older 9470R/RT, 9520R/RT (2015 era) | PowerTech PSS 13.5L | 470 / 520 rated | e18 18F/6R |
| Older 9570R/RT, 9620R (2015 era) | Cummins QSX15 14.9L | 570 / 620 rated | e18 18F/6R |
| Full class spread (rated power) | 13.5L – 18L, three engine families | 470 – 830 hp | e18 or e21, both 25 mph |
Hydraulic Flow, Transmission, Weight and Drawbar Configuration
Hydraulic flow is where configurations diverge most. The 9R 590 Scraper Special is standard with a 55-gpm pump, optional with a 110-gpm pump, while the 9RX 490 carries the 110-gpm pump as standard. JD18 machines go further — a 56-gpm single pump, a 112-gpm dual pump, or a 168-gpm triple pump, with Intelligent Power Management unlocking up to 40 extra horsepower on demand — and older 2015-era machines used a 115-gpm dual pump. A single rear SCV gives about 35 gpm through half-inch couplers and 42 gpm through three-quarter-inch couplers on JD14 machines; four SCVs are standard, six optional. A single ejector pan needs only about 25 gpm at 2,900 psi, but a triple-pan train with grade control is a different machine: order the pump for the train you plan to run, not the pan you start with — the pump rule this John Deere Scraper-Special Tractors review repeats because it is the costliest mistake to fix.
Transmissions are PowerShift throughout: the e18 18-forward/6-reverse on JD14 and older machines, and the e21 21-forward/11-reverse on JD18 machines, both with Efficiency Manager and topping out at 25 mph. On weight, the 9R 590 bases at 45,980 lb, the 9RX 490 at 56,320 lb, and the 9RT 470 at 45,375 lb with 54,000 lb maximum ballast. Across the JD14 range, rear-axle load rating is 26,500 lb and maximum ballast 67,000 lb; JD18 machines go to 84,000 lb. The drawbar is a Category 5 with heavy-duty support — short standard, long optional on wheeled tractors — and fuel follows the generation split: the 2015-era 9R series carried 400 gallons of diesel with a 31.7-gallon DEF tank, while JD18 9RX machines carry roughly 515 gallons of diesel and no DEF at all. That spread is exactly why this John Deere Scraper-Special Tractors review refuses to quote one weight, one pump, or one tank for the whole class.
John Deere Scraper-Special Tractors and Scraper Compatibility
A Scraper Special without the right pan is just a heavy tractor, and a pan behind the wrong tractor is a stalled cut. Compatibility means four matches at once: pan capacity against tractor power, drawbar support against tongue weight, pump output against cylinder demand, and brakes against loaded train weight. This section of the John Deere Scraper-Special Tractors review works through each match.
Ejector, Carry-All and Other Scraper Applications
Deere sells two pan families, and the choice starts with soil: ejectors push the load out with a moving wall, suiting heavy clays and gumbos, while carry-alls dump like a loader and suit loose material. As this John Deere Scraper-Special Tractors review notes, model numbers decode directly: first digits are heaped capacity in cubic yards, last digits the cutting width in feet — a 2112 is a 21-yard pan with a 12-foot cut. Carry-all heaped capacities run 15.0 yards (1510D C), 18.0 (1812D C), and 21.5 (2112D C); ejector capacities run 16.0 yards (1612D E) to 24.0 heaped and 15.8 struck (2412D E), a 29,500-lb pan wanting 450–575-plus hp.

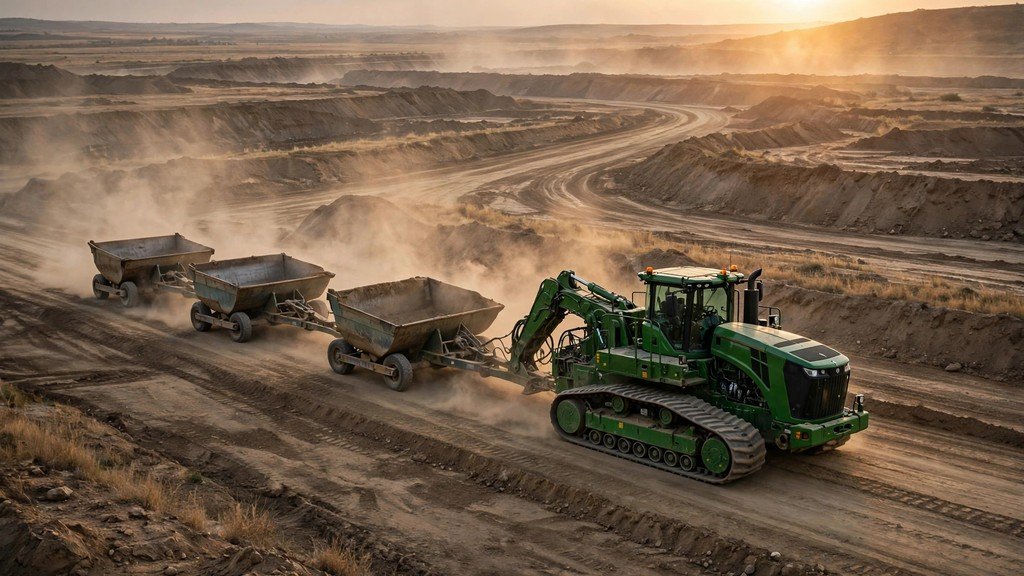

Capacity scales by running pans together: tandem and triple 21- and 24-yard pans push a cycle toward 72 cubic yards, and top-loading triples rate up to about 80 tons per cycle. For buyers wanting one big pan instead of a train, Deere’s newest direct-hitch models change the math: the 3012 DH heaps 30 yards on a 12-foot bowl and can be pulled by any 9R, 9RT or 9RX tractor, while the 3812 DH heaps 38 yards on a 12-foot-10-inch bowl and pairs with the 9RX 710 and 770. The video below is Equipment World’s first look at those two pans — worth watching before choosing between one big pan and a tandem train.
Drawbar Support, Ballast, Hydraulics and Brake Requirements
The drawbar is the most neglected part of a scraper system, and this John Deere Scraper-Special Tractors review puts it bluntly: a standard agricultural drawbar is not a scraper drawbar. Scraper Specials get a heavy-duty drawbar support as base equipment — short standard, long optional on wheeled tractors — plus heavy-duty gudgeon and tow cable. On a used machine, check the support for cracks and pin bore ovaling first; on a loaded train, that is a safety item. Ballast follows the pan, not the brochure: 54,000 lb maximum on a 9RT 470, 67,000 lb across the JD14 range, 84,000 lb on JD18s. Too little and the tractor spins; too much and you haul dead weight uphill. On brakes, the tractor’s wet-disc brakes stop the tractor, but the train needs its own: the 3012 DH and 3812 DH come standard with disc brakes, and the engine brake — available on JD14 machines above 540 hp — unloads service brakes on long downhill hauls.
John Deere 9R vs. 9RT vs. 9RX Scraper Tractors
Wheels, two tracks, or four tracks is the decision buyers argue about most, and this John Deere Scraper-Special Tractors review can settle it cleanly: each configuration has a ground condition where it wins and one where it costs you money. Engines, transmissions, cabs and electronics are shared; what changes is how power reaches the ground, how the machine turns, and what it costs to run.
Differences in Wheels, Two-Track and Four-Track Designs

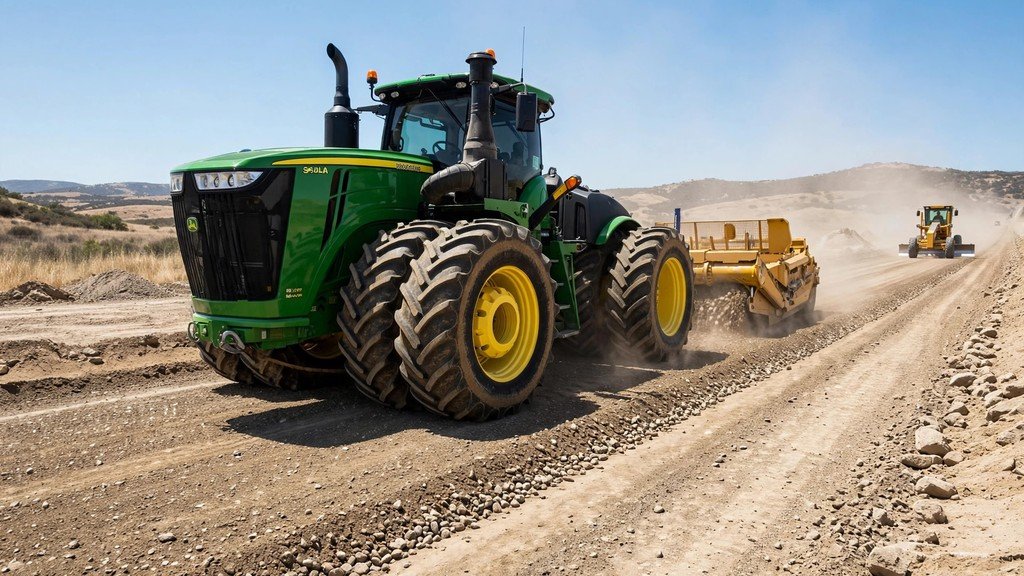

The wheeled 9R is the haul-road machine: fastest on firm ground, tightest turning on a prepared site, with HydraCushion suspension nearly eliminating road lope. Its costs are tires in sets and traction that falls off fast on soft ground. The two-track 9RT is the soft-ground machine: roughly half again the ground contact of wheels, excellent straight-line pulling, and far better flotation for levee, pond, and wet-clay work — paid for with undercarriage wear. The four-track 9RX is the heavy-load machine: four tracks spread weight widest and grip hardest, which is why the 770 and 830 hp flagships are 9RX machines, with 120-inch track spacing for service access. The cost is complexity, price, and four undercarriages to maintain.
Choosing the Right Configuration for Your Earthmoving Job

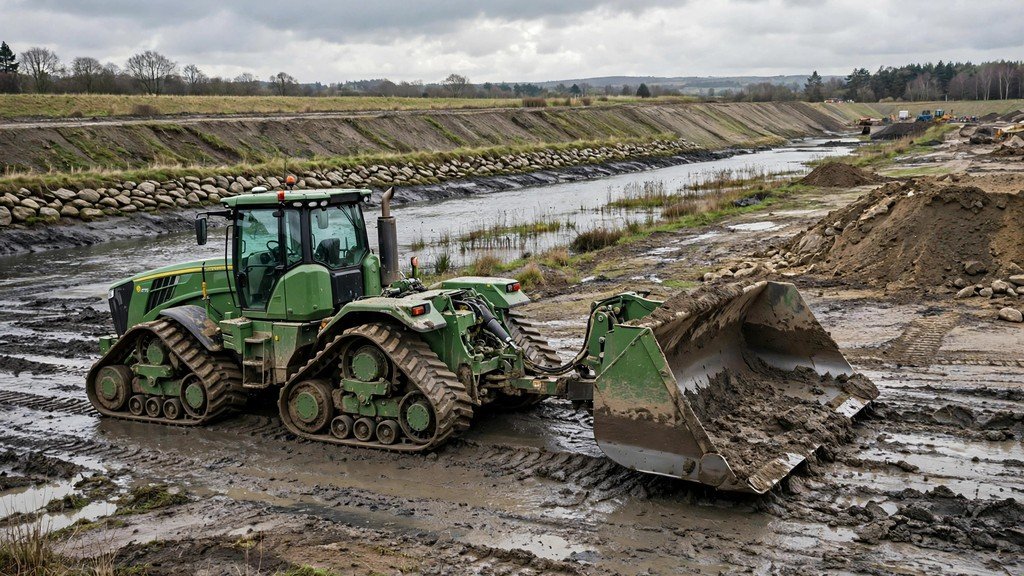

Match the configuration to the ground you work. Firm, dry haul roads, long cycles: take the wheeled 9R and spend the savings on the high-flow pump and AutoLoad. Soft, wet, levee and pond work where flotation decides whether you work: take the 9RT, and budget the undercarriage from day one. The heaviest triple-pan trains and biggest single pans: take the 9RX, and accept the higher cost as capacity’s price. Resale follows the same logic — the 9R sells widest, the 9RT to the contractor needing tracks, the 9RX to the buyer running the biggest trains. If torn, demo both on your ground for a week: the cut does not lie, and that test is the advice this John Deere Scraper-Special Tractors review ends on. The 9R review and the 9520RX review cover the agricultural side of these platforms, and the companion Scraper-Special performance and fuel usage guide covers fuel and cycle times.
John Deere Scraper-Special Tractors Review: Frequently Asked Questions
These answers cover the questions buyers actually ask about the class, answered directly from the specs and listings in this John Deere Scraper-Special Tractors review.
What is a Scraper-Special tractor?
This John Deere Scraper-Special Tractors review defines it as a factory 9R, 9RT or 9RX configuration, reinforced for earthmoving — stronger frame, axle supports, heavy-duty drawbar support, tow cable.
How is a Scraper-Special different from a regular 9R?
This John Deere Scraper-Special Tractors review notes the differences are structural: reinforced frames, larger articulation pins and bearings, heavy-duty drawbar support, and drawbar software, not a different engine.
How much horsepower do Scraper-Special tractors have?
This John Deere Scraper-Special Tractors review puts rated power at 470–830 hp: JD14 machines 470–640 hp, JD18 machines 700–830 hp, with about 10 percent boost.
Which engines power the newest Scraper-Special tractors?
This John Deere Scraper-Special Tractors review lists the JD14 13.6-liter six for 470–590 hp models, a Cummins 15-liter for 640s, and the 18-liter JD18 for the 710, 770 and 830.
Are 9RT two-track Scraper Specials still made?
Yes — this John Deere Scraper-Special Tractors review confirms the 9RT 470, 520 and 570 Scraper Specials remain in the JD14 lineup, alongside 9R and 9RX versions.
What size scraper can a 9R 590 Scraper Special pull?
This John Deere Scraper-Special Tractors review says a 9R 590 handles a 24-yard ejector pan alone, a tandem pair of 21-yard pans, or a 30-yard direct-hitch pan, soil and grade permitting.
Ejector or carry-all — which pan should I choose?
This John Deere Scraper-Special Tractors review recommends ejectors for heavy clays and gumbos that hang in a bowl, and carry-alls for loose material that dumps cleanly.
What do scraper model numbers mean?
This John Deere Scraper-Special Tractors review decodes them directly: first digits are heaped capacity in cubic yards, last digits the cutting width in feet — a 2112 is a 21-yard pan, 12-foot cut.
Can one tractor pull two or three scrapers?
Yes — this John Deere Scraper-Special Tractors review notes tandem and triple trains push a cycle toward 72 cubic yards, but pump, drawbar support and brakes must be sized for the train.
What is AutoLoad?
This John Deere Scraper-Special Tractors review describes AutoLoad as Deere’s exclusive system automating the scraper’s lift during loading, adjusting cutting-edge height from draft load, wheel slip and soil.
What is the Earthmoving Productivity System (EPS)?
This John Deere Scraper-Special Tractors review describes EPS as a 3D stereo camera inside the pan measuring yardage in real time and sending totals to the supervisor through JDLink.
How much does a used Scraper-Special tractor cost?
This John Deere Scraper-Special Tractors review cites October 2026 asking prices of about $405,000–$460,000 for 9R and 9RX family machines in the 570–620 hp class, pans usually priced separately.
How much hydraulic flow does a scraper need?
This John Deere Scraper-Special Tractors review puts a single ejector pan at about 25 gpm at 2,900 psi, against 55 gpm standard or 110 gpm optional on JD14s and up to 168 gpm on JD18s.
Does a Scraper-Special need a special drawbar?
Yes — this John Deere Scraper-Special Tractors review stresses the heavy-duty Category 5 drawbar support is base equipment, short standard and long optional on wheeled tractors, and a safety item on a loaded train.
What warranty do Scraper-Special tractors carry?
This John Deere Scraper-Special Tractors review reports the base warranty of 24 months or 2,000 hours, with scraper-application coverage quoted at the same 2 years and 2,000 hours on earlier generations.
9R, 9RT or 9RX — which should I buy for my earthmoving job?
This John Deere Scraper-Special Tractors review says: the 9R for firm haul roads, the 9RT for soft and wet ground, and the 9RX for the heaviest triple-pan trains and biggest pans.
